AWR Timeline
Comparison

One read-only command, one self-contained HTML report — a worst-first console for your whole fleet, or one database compared against its own history in statistical depth.

  • 100% read-only
  • Zero install
  • Single-file HTML output
  • No Python, no agents

It compares the same hour like-for-like across weeks, scores every metric against its own history, and grades what genuinely moved — OK, Warning, Critical.

Fleet quick start Single-DB quick start Live example report
Field log
./run_awr_fleet.sh fleet.conf
→ querying DBA_HIST_* — SELECT only, nothing written
release
DB time · this hour vs the 4 prior weeks
16 movers vs the prior 4 windows Critical
01

Install

There is nothing to install in the database — no scratch schema, no packages, not a single write. Clone the repo on any machine with SQL*Plus and run.

  • Oracle Database 19c with the Diagnostic + Tuning Pack licensed (the toolkit reads DBA_HIST_*).
  • A user that can read the AWR views — any DBA account, or a dedicated analyst granted SELECT on the handful of views listed in the README. A read-only standby that exposes AWR works too.
install = clone
git clone https://github.com/davidbudac/awr_timeline_comparison.git
cd awr_timeline_comparison
02

The fleet console

The mode most people want: point run_awr_fleet.sh at a list of databases and get one self-contained, worst-first ops console. It runs the same aligned-window, z-score comparison against every database in parallel and sorts the results so the sickest database is the first row on the page.

Each database is one dense, collapsed row — status dot, severity score, crit/warn pills, current AAS, its worst finding, a DB-time sparkline and a 24-hour ASH-by-wait-class ribbon. Click a row and it expands in place into a full detail panel: a tall 24h ASH timeline, headline metric cards, the findings table and the Top-SQL table.

fleet.conf — one alias|connect per line
# alias        | connect
prod-emea      | /@PRODEMEA
prod-amer      | /@PRODAMER
reporting      | reporting_ro/@RPT
one command, the whole fleet
./run_awr_fleet.sh fleet.conf

# mark a fleet-wide event on every DB's 24h ASH chart:
MARKERS='2026-04-20 14:00|Applied patch 19.22' ./run_awr_fleet.sh fleet.conf
  • A database that is unreachable, times out, or spools a truncated fragment becomes a red error row sorted to the top — silence is never mistaken for health.
  • Every row prints the exact drill-down command to open the full single-DB report for that database.
  • Fleet-wide timeline markers are drawn across every database's ASH chart at the same instant — a release or patch lines up visually across the whole estate.
  • Inline-SVG only, offline-complete, read-only; credentials are masked in every log and report.

Full reference — fleet.conf format, scoring, every environment variable — in the Fleet section of the README.

03

One database, in depth

The single-DB report answers “is this database behaving the way it did before?” It lines up the same hour of the same weekday across the past weeks — this Monday 09:00–10:00 against the four prior Mondays — so the normal weekly rhythm is never mistaken for a problem, and grades every metric against its own history: |z| > 2 Warning, |z| > 3 Critical. Inside: hero cards, an ASH timeline, a findings heatmap, load profile, waits, Top SQL ranked five ways with per-SQL ASH breakdowns, segment & file I/O and parameter changes — plus dark mode and the Essential-rows / Application-only toggles, all client-side.

common runs — run_awr_trend.sh
# defaults: current hour vs the same hour on the 4 prior weeks
./run_awr_trend.sh user/pw@svc

# a specific Monday morning vs the 4 prior Mondays
./run_awr_trend.sh user/pw@svc '2026-04-13 09:00'

# last 4 hours, hour by hour
./run_awr_trend.sh user/pw@svc AUTO 1 4 10 0 1 h

# lean triage report
./run_awr_trend.sh user/pw@svc AUTO 1 4 10 0 1 w simple

# annotate the timelines with your own milestones
MARKERS='2026-04-20 14:00|Applied patch 19.22' ./run_awr_trend.sh user/pw@svc

Unsure about the argument order? Run the interactive configurator — it walks you through every option with defaults and validation, then prints the ready-to-paste command. The web configurator does the same in your browser, and the cheat sheet has the full argument reference plus ready-to-paste recipes (hour-by-hour walkthroughs, batch-window checks, quarter-over-quarter, offline reports, markers).

interactive configurator
# also -c, -i, --interactive, or just run with no arguments
./run_awr_trend.sh --configure
pure SQL*Plus — no shell required (Windows-friendly)
SQL> @sql/defaults.sql
SQL> @awr_trend.sql

-- or customize one-off:
SQL> DEFINE target_end = '2026-04-15 09:00'
SQL> DEFINE win_hours  = 2
SQL> DEFINE weeks_back = 6
SQL> @awr_trend.sql

The report lands in reports/awr_trend_<DBID>_<timestamp>_run<run_id>.html — open it in any browser, attach it to a ticket. RAC and multitenant (PDB / migrated-PDB) are handled; when history is too short to score fairly, the report says so instead of guessing.

From a live test run

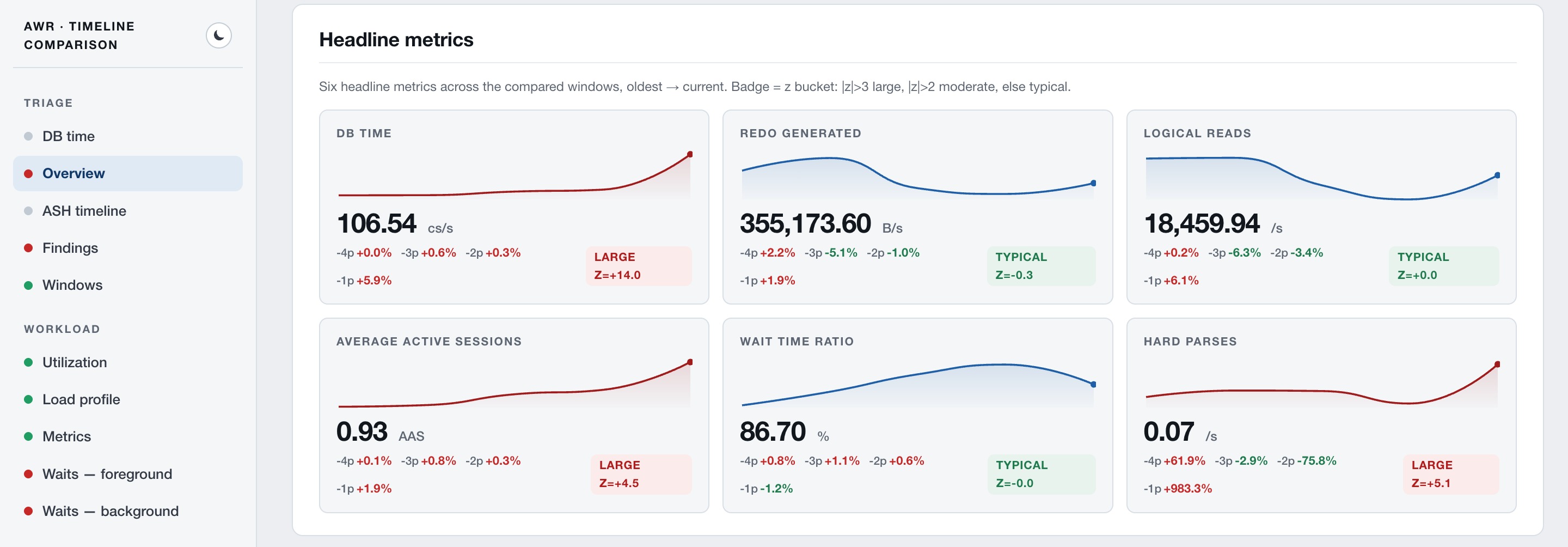

Report screenshot: six headline metric cards with trend sparklines, current values and statistical badges
Six headline health cards: the trend across the compared windows, the current value, and a statistical badge — “typical” when a metric sits inside its normal range, “large” when it jumps beyond it — instead of a wall of raw numbers to squint at.
04

Templates

The template argument picks which curated set of metrics and wait events the single-DB report renders — same comparison engine, different altitude:

comprehensive
For DBAs. The default — the full curated lists and the complete firehose of wait events ranked by time.
simple
For triage. A quick-glance subset you skim in thirty seconds before deciding whether to dig.
dev
For application teams. What the application itself drives — throughput, query work, parsing, SQL*Net chattiness, app-caused contention — with host/OS and storage internals left out.

Rolling your own is a directory with three files under sql/lib/templates/<name>/ plus one whitelist entry in the driver — see the README.

05

Example reports

Real, unedited reports generated against a small Oracle 19c lab database — each a single HTML file exactly as the toolkit spooled it. Open them, scroll around, hover the charts.

comprehensive · hourly

The full report

Default template, hour-over-hour cadence: hero cards, ASH timeline, findings heatmap, waits, Top SQL, per-SQL ASH breakdowns — plus dark mode and the row filters.

Open report → simple · hourly

The triage view

Same engine, template=simple: a lean subset of stats, metrics and waits for a thirty-second skim.

Open report → markers · hourly

With timeline markers

Run with inline markers: “Patch 19.22 applied” and “Index rebuild on SALES” drawn on every dated chart.

Open report →
